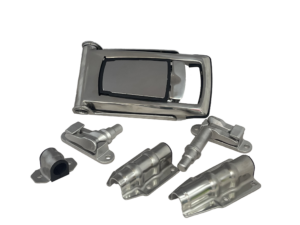

3412703 Z – External “PULL” Door Locks 341 Series. Full external “pull” door lock 341 series, suitable for use with Ø27 mm tube. Cranked support guide. Steel.

SKU: 991 Category: Door Locking Gear Kit

Additional information

Weight	5,356 kg
Material	Steel
Finished surface	Zinc plated coated
Mounting Height	24 mm
Opening System	Pull
Dimension	Tube Ø27 mm
Note	The set showed on the picture is standard. It must be bespoken according of your requirements.
On request	Supply full set welded on according of the customer’s drawing, Supply set with cam (upper or bottom or both) welded on the tube, Supply tube

Read more	34127 Z - External “Pull” Door Locking handle (guide base type) 341 series, suitable for use with Ø27 mm tube. Zinc plated steel flap with anti-cut system (opening contact area made by PA6+GRP. Designed for internal opening (push bottom for internal release device). Steel.
Read more	300117 Z – Cam 311 series with base suitable for use with Ø25-27 mm tube. Precision casting by zinc steel.
Read more	300215 Z - Keeper 311 series. Precision casting by zinc steel.
Read more	300306 Z - Small tube clamp suitable for use with Ø25-27 mm tube. Steel.
Read more	300321 Z - Small cranked support guide suitable for use with Ø25-27 mm tube. Steel.
Read more	300405 - Half nylon bush suitable for use with Ø27 mm tube.
