3501601 I – External Door Locks 350 Series. Full external “push” door lock 350 series, suitable for use with Ø16 mm tube. Small tube clamp. Stainless steel.
Additional information
| Weight | 2,723 kg |
|---|---|
| Material | Stainless steel 304G |
| Finished surface | Matt finished, Mirror shine finished 304G |
| Mounting Height | 18 mm |
| Opening System | Push |
| Dimension | Tube Ø16 mm |
| Push bottom Release | Yes |
| Optional | Customized logo engraved by laser |

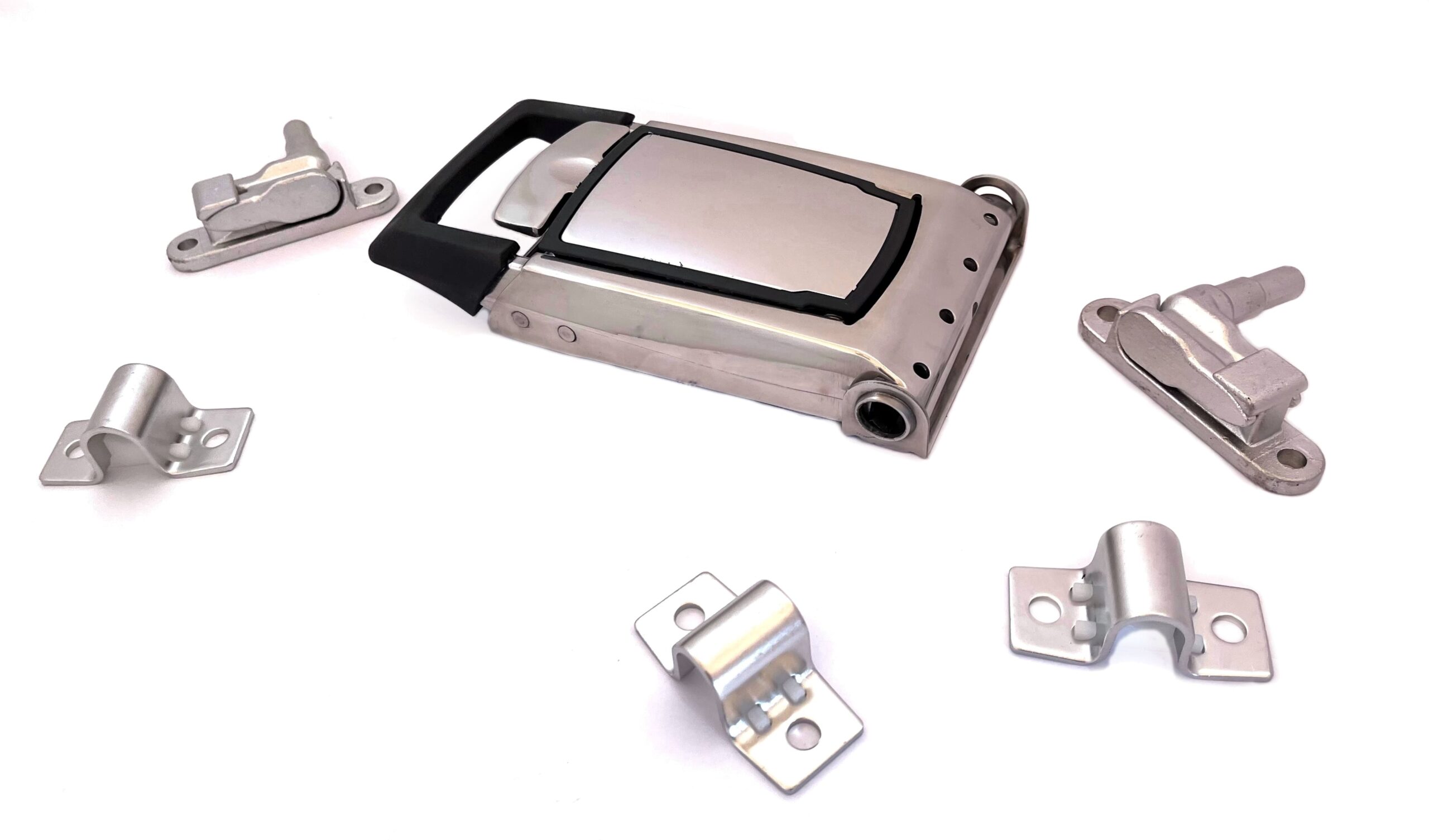

| Note | The set showed on the picture is standard. It must be bespoken according of your requirements. |
| On request | Supply full set welded on according of the customer’s drawing, Supply set with cam (upper or bottom or both) welded on the tube, Supply tube |
